Kepo ENERGREEN

There is no bad pellet for KEPO ENERGREEN!

Inspired by the market which, in addition to wood, also offers agro-pellets, as well as by the desire of users for as few responsibilities concerning boiler operation as possible, we decided to create KEPO ENERGREEN.

KEPO ENERGREEN possesses a different combustion system, which reduces the possibility of downtime in working with wood and agro-pellets to a minimum (provided that the pellet meets the basic standards of granule shape and structure, that does not decompose).

In addition to all the features it shares with KEPO COMFORT, here are some of the differences that make this boiler even more state-of-the-art:

  • automatic cleaning of the burner (in a different way)
  • automatic discharge of ash into a tank outside the boiler
  • larger pellet tank
  • simple ash disposal after consuming 1.5 tons of wood pellets or 150 kilograms agro-pellets

ENERGREEN MODEL SERIES AND POWER

KEPO offers two power ratings of ENERGREEN
Models: 25 kW and 35 kW

Depending on whether you need a 25 kW or 35 kW KEPO ENERGREEN boiler, you can rest assured you will significantly save your time and spare yourself the hassle related to regular boiler maintenance because these are its biggest advantages.



AUTOMATIC CLEANING SERIES (AC)

A boiler series with automatic cleaning of the burner that ensures reliable operation even with pellets of poorer quality and saves your time when it comes to the regular burner, thus providing a higher level of user comfort.

NOTE: KEPO COMFORT is produced in the AC and MC series while KEPO ENERGREEN and KEPO PELECTRO are only available in the AC series. Apart from the method of cleaning the burner and heat exchanger, these series do not differ in other technical solutions.
  • Techincal Specifications
  • LCD display
  • Accessories

KEPO ENERGREEN MODEL

TECHNICAL SPECIFICATIONSMeasurement unitAC 25AC 35
Weightkg402470
Heightmm16001600
Widthmm765765
Depthmm9851250
Flue pipe diametermm120120
Draftmbar0,10,1
Pellet tank capacitykg95150
Electricity consumption at startW608675
Electricity consumption during operationW123153
Standby power consumptionW44
Nominal voltageVac220-240220-240
Nominal frequencyHz5050
Water pipe diameter5/45/4
Safety valve pipe diameter1/21/2
Pump flow ratel/h14001400
Expansion dishl824
Exhaust gas temperature in nominal mode°C118,1134,6
Exhaust gas temperature in minimum operating mode°C7584,2
Amount of water in the boilerl7286
Boiler powerkWmin 7,5 – max 26min 11 – max 36,4
Pellet consumptionkg/hmin 1,77 – max 5,99min 2,58 – max 8,47
Energy utilization%min 89,7 – nominal 91,4min 90,0 – nominal 90,5
Water temperature setting range°Cmin 60 – max 80min 60 – max 80
Minimum return water temperature°C5050
Boiler water pressurebarmin 0,6 – max 2,5min 0,6 – max 2,5
Recommended pellet classEN303-5 EN plusC1 – A1C1 – A1
Boiler class45
Boiler energy efficiencyA+
Heating surface130 - 220170 - 330

NOTE – The table shows the recommended boiler power according to the heating surface. Factors influencing the determination of boiler power are the average outdoor temperature during winter, building insulation, temperature that is set inside the building, calculation related to the central heating system inside the building. All buildings and all user needs are unique and based on that, your designated expert is obliged to calculate energy losses, assess existing installations and determine the boiler power adequate for your quarters based on that.

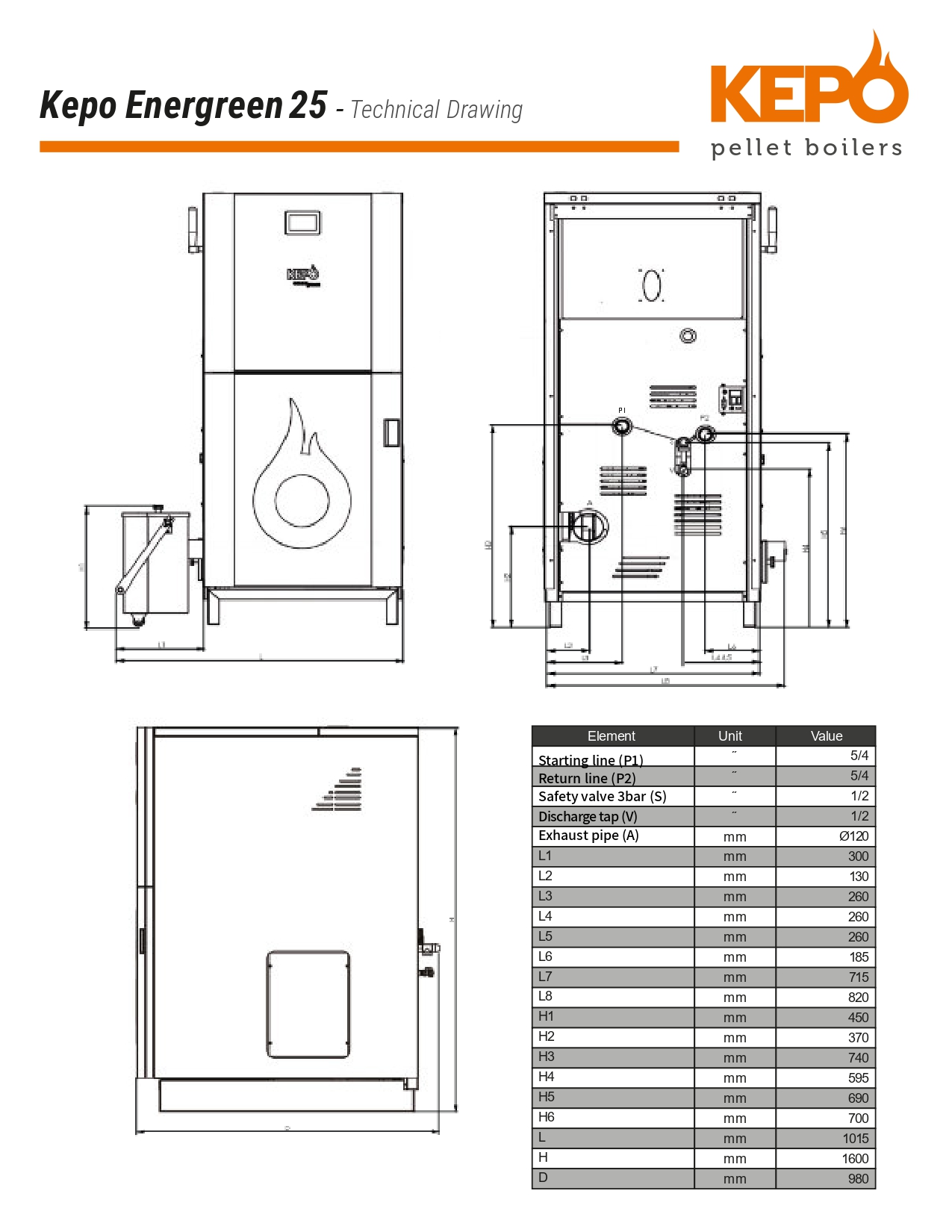

Boiler dimensions and connectors

KEPO ENERGREEN 25
KEPO ENERGREEN 35

LCD TOUCH-SCREEN FOR PRACTICAL BOILER OPERATION

The new Tiemme software with a “4.3 touch-screen” is characterized by a beautiful design, visibility and practicality in handling, and in addition to menus in foreign languages, the software also has a menu in Serbian.

The display shows the current values of the boiler clearly, and you can adjust them to your needs with only a few clicks.

REMOTE BOILER CONTROL VIA WIFI CONNECTION

A modern age necessity! The WiFi connection is an additional option that saves the user’s time and makes everyday life easier.

Through the WiFi module and the “4HEAT” application, which is supported on both Android and iOS platforms, KEPO pellet boiler users can easily correct the already set parameters on the boiler.

BIG TANK

As one of the options, we offer the installation of an additional high-capacity pellet tank (225 kg).

FLUE PIPES FOR PELLET BOILERS AND STOVES

A wide range of flue pipes for pellet stoves and boilers gives you the freedom to combine and adapt to any on-site situation.
