KEPO COMFORT models are high-quality pellet boilers that have been present on the domestic and foreign markets for many years.
They are characterized by operating comfort, reliable operation, low consumption, high level of finish, and innovative technical solutions which are improved every year by following the latest trends in the world of pellet boilers.
This is the model which enabled KEPO to justify customer trust and secure a long-term presence in the market with a constant growth in sales.
- Automatic cleaning of the burner and heat exchanger (AC Boiler Series)
- Manual burner cleaning and semi-automatic heat exchanger cleaning, with only a single hand stroke (MC Boiler Series)
- High-level energy efficiency and proper boiler operation are achieved thanks to the automatic (AC) or semi-automatic (MC) cleaning of the heat exchanger
- Automatic control of boiler operation
- Possibility of installing a WiFi module for the remote control of boiler operation
- Possibility of connecting an additional pellet tank, ie., Big Tank, with a capacity of 225 kg
- Compact boiler size containing an expansion vessel, pump, safety valve, relief valve and boiler filling and drain valve
- CE quality certificate of the highest class (5)
COMFORT MODEL SERIES AND POWER
KEPO offers four power ratings of COMFORT Models: 15 kW, 20 kW, 25 kW and 35 kW
Once you determine the boiler power you need, all that remains is for you to choose one of the two offered KEPO COMFORT Model Series: AC (automatic cleaning of the burner and heat exchanger) or MC (manual cleaning of the burner and semi-automatic cleaning of the heat exchanger).
Apart from the method of cleaning the burner and heat exchanger, these series do not differ in other technical solutions.
AUTOMATIC CLEANING SERIES (AC)
A boiler series with automatic cleaning of the burner and heat exchanger that ensures reliable operation even with pellets of poorer quality and saves your time when it comes to the regular burner and heat exchanger maintenance, thus providing a higher level of user comfort.
MANUAL CLEANING SERIES (MC)
Boiler series with the same structural solution as AC series boilers. In this case, the user is obliged to, when necessary, turn off the boiler and manually clean the ash deposits that interfere with the proper operation of the boiler from the burner. The semi-automatic cleaning of the heat exchanger is made possible without the need to turn off the boiler, and all it takes is one stroke.
NOTE: All KEPO pellet boiler models are produced as AC and MC except ENERGREEN, which is only available in AC series.
- Technical Specifications
- LCD display
- Accessories
KEPO COMFORT MODEL
TECHNICAL SPECIFICATIONS | Measurement unit | AC 15 / MC 15 | AC 20 / MC 20 | AC 25 / MC 25 | AC 35 / MC 35 |
---|---|---|---|---|---|
Weight | kg | 218/205 | 255/248 | 280/272 | 416/410 |
Height | mm | 1155 | 1280 | 1430 | 1600 |
Width | mm | 600 | 665 | 665 | 765 |
Depth | mm | 790 | 830 | 830 | 1050 |
Flue pipe diameter | mm | 80 | 80 | 100 | 120 |
Draft | mbar | 0,1 | 0,1 | 0,1 | 0,1 |
Pellet tank capacity | kg | 40 | 62 | 75 | 120 |
Electricity consumption at start | W | 288 | 288 | 288 | 350 |
Electricity consumption during operation | W | 70 | 110 | 110 | 110 |
Standby power consumption | W | 3 | 3 | 3 | 3 |
Nominal voltage | Vac | 220-240 | 220-240 | 220-240 | 220-240 |
Nominal frequency | Hz | 50 | 50 | 50 | 50 |
Water pipe diameter | ” | 1 | 1 | 1 | 5/4 |
Safety valve pipe diameter | ” | 1/2 | 1/2 | 1/2 | 1/2 |
Pump flow rate | l/h | 1300 | 1300 | 1300 | 1300 |
Exhaust gas temperature in nominal mode | °C | 144,8 | 119 | 118,6 | 93 |
Exhaust gas temperature in minimum operating mode | °C | 78,2 | 63 | 68,5 | 55 |
Amount of water in the boiler | l | 42 | 53 | 72 | 98 |
Boiler power | kW | min 4,5 – max 14,8 | min 5,79 – max 18,5 | min 7 – max 23,7 | min 8,7– max 35,7 |
Pellet consumption | kg/h | min 1,055 – max 3,52 | min 1,4 – max 4,5 | min 1,4 – max 5,46 | min 2,1 – max 8,6 |
Energy utilization | % | min 88,4 – nominal 89,2 | min 92,5 – nominal 88,7 | min 89,6 – nominal 91,6 | min 91,91 – nominal 90,4 |
Water temperature setting range | °C | min 60 – max 80 | min 60 – max 80 | min 60 – max 80 | min 60 – max 80 |
Minimum return water temperature | °C | 50 | 50 | 50 | 50 |
Boiler water pressure | bar | min 0,6 – max 2,5 | min 0,6 – max 2,5 | min 0,6 – max 2,5 | min 0,6 – max 2,5 |
Recommended pellet class | EN303-5 EN plus | C1 – A1 | C1 – A1 | C1 – A1 | C1 – A1 |
Boiler class | – | 5 | 5 | 5 | 5 |
Boiler energy efficiency | – | A+ | A+ | A+ | A+ |
Heating surface | m² | 50 - 100 | 100 - 160 | 130 - 220 | 170 - 330 |
NOTE – The table shows the recommended boiler power according to the heating surface. Factors influencing the determination of boiler power are the average outdoor temperature during winter, building insulation, temperature that is set inside the building, pellet quality, calculation related to the central heating system inside the building. All buildings and all user needs are unique and based on that, your designated expert is obliged to calculate energy losses, assess existing installations and determine the boiler power adequate for your quarters based on that.

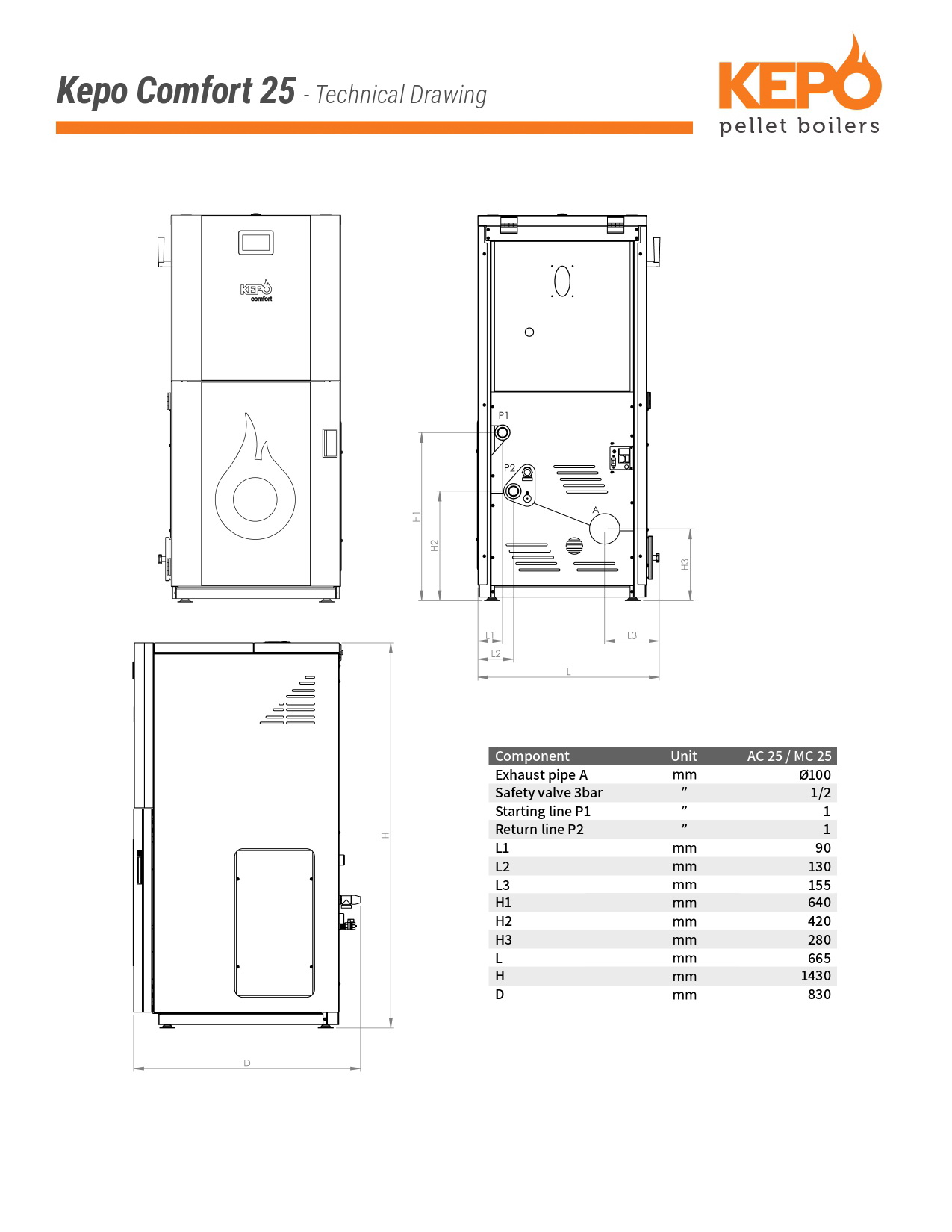

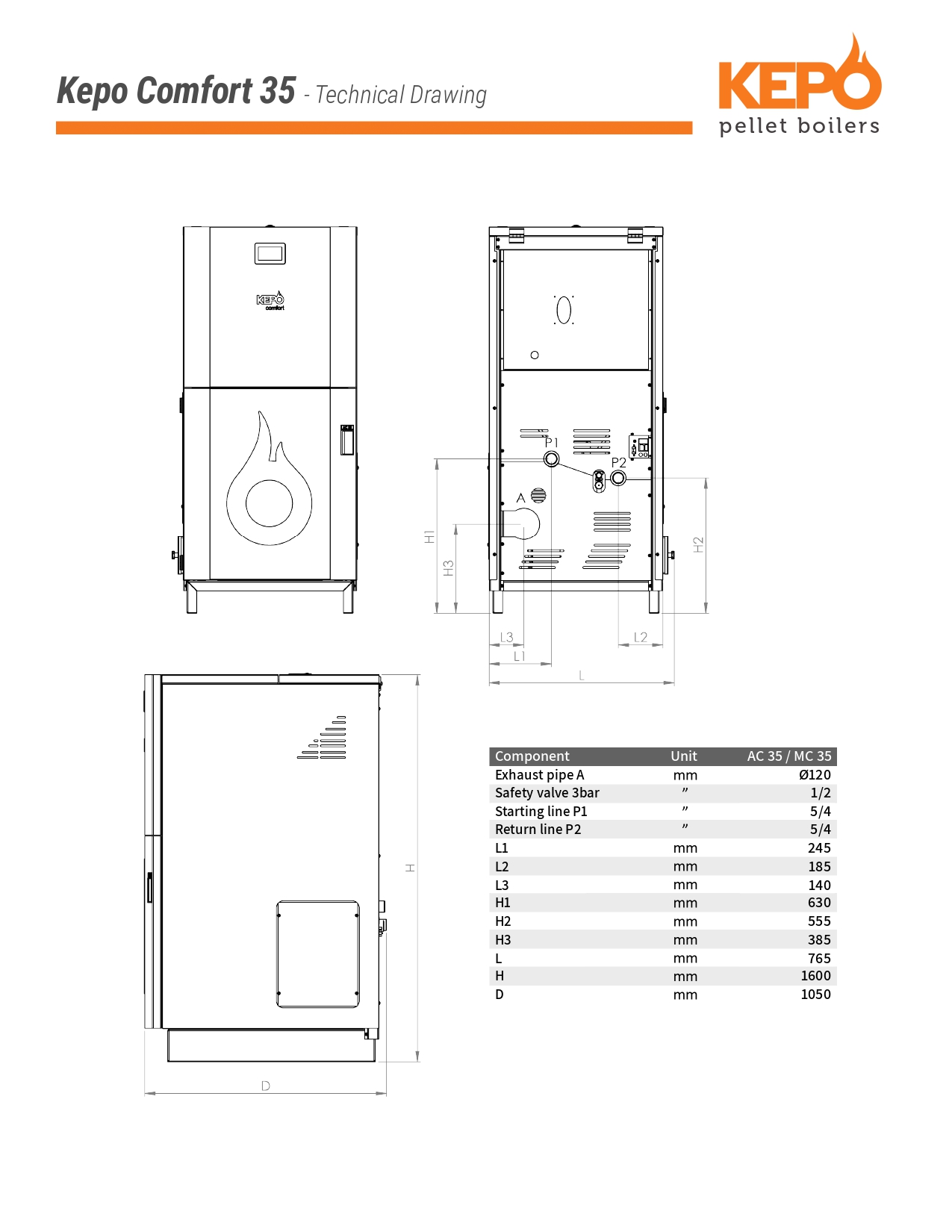

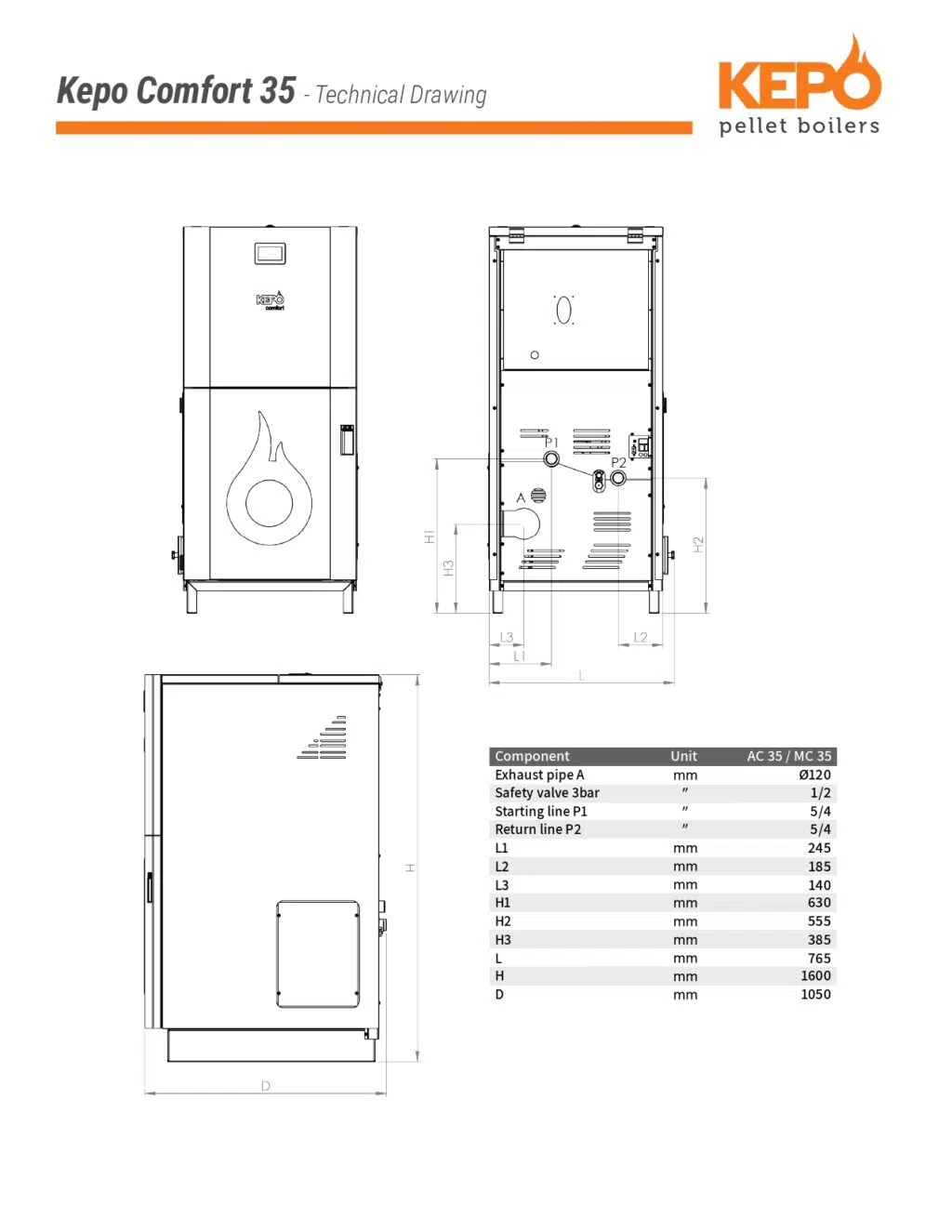

Boiler dimensions and connectors
DOCUMENTS
KEPO COMFORT 15
KEPO COMFORT 20
KEPO COMFORT 25
KEPO COMFORT 35
Additional COMFORT documents
LCD TOUCH-SCREEN FOR PRACTICAL BOILER OPERATION
The new Tiemme software with a “4.3 touch-screen” is characterized by a beautiful design, visibility and practicality in handling, and in addition to menus in foreign languages, the software also has a menu in Serbian.
The display shows the current values of the boiler clearly, and you can adjust them to your needs with only a few clicks.
REMOTE BOILER CONTROL VIA WIFI CONNECTION
A modern age necessity! The WiFi connection is an additional option that saves the user’s time and makes everyday life easier.
Through the WiFi module and the “4HEAT” application, which is supported on both Android and iOS platforms, KEPO pellet boiler users can easily correct the already set parameters on the boiler.
BIG TANK
As one of the options, we offer the installation of an additional high-capacity pellet tank (225 kg).
FLUE PIPES FOR PELLET BOILERS AND STOVES
A wide range of flue pipes for pellet stoves and boilers gives you the freedom to combine and adapt to any on-site situation.
